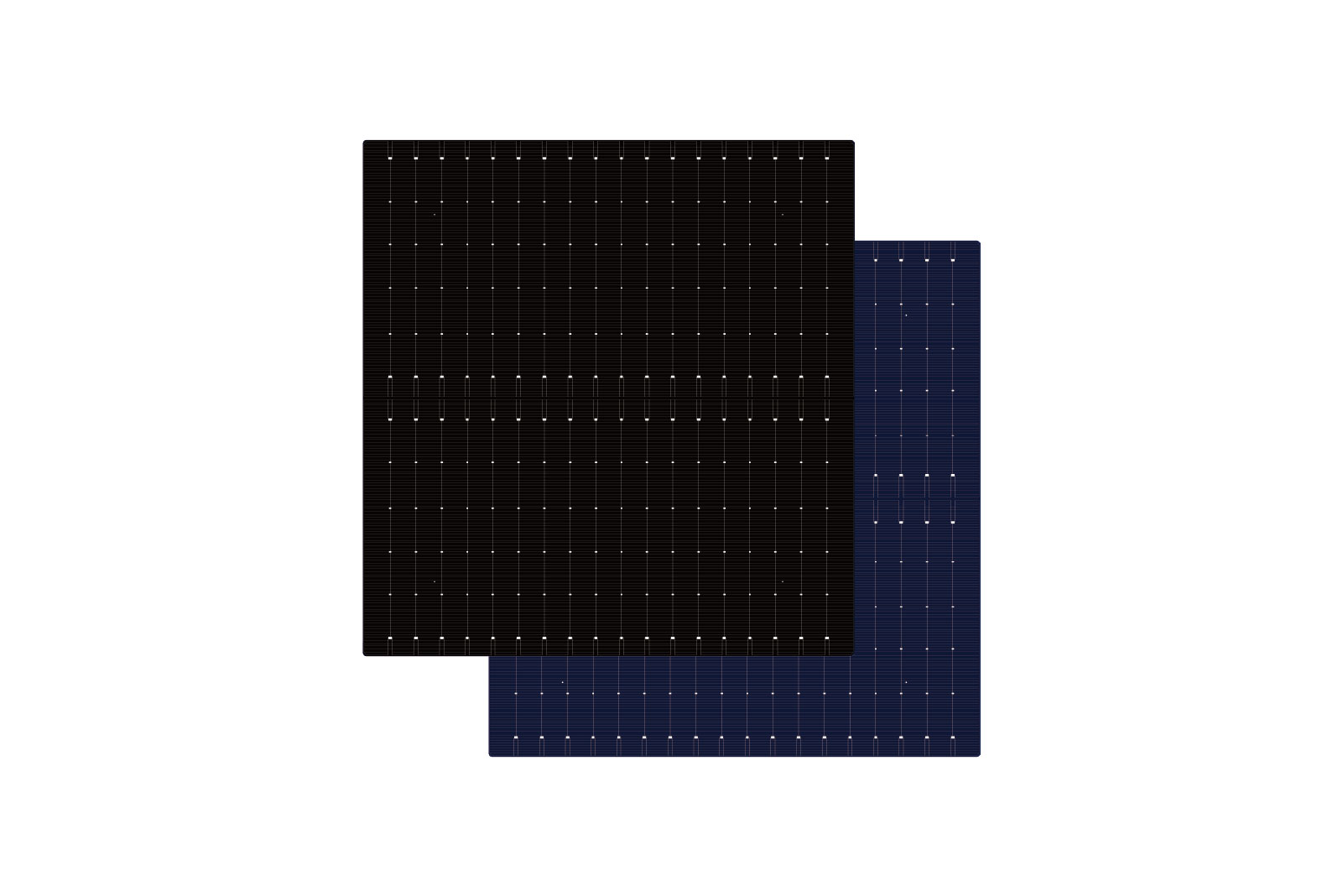

M10RN-ST-16BB -160180
| Edge Length | 182.2mm*186.7mm±0.25m |
| Diagonal Length | mΦ250mm±0.25mm |
| Thickness | 130μm±10μm |
| Power Temperature Coefficient | -(0.32±0.02)%/k |
| Maximum Voc | -(0.28±0.03)%/k |
| Maximum Isc | +(0.06±0.015)%/k |

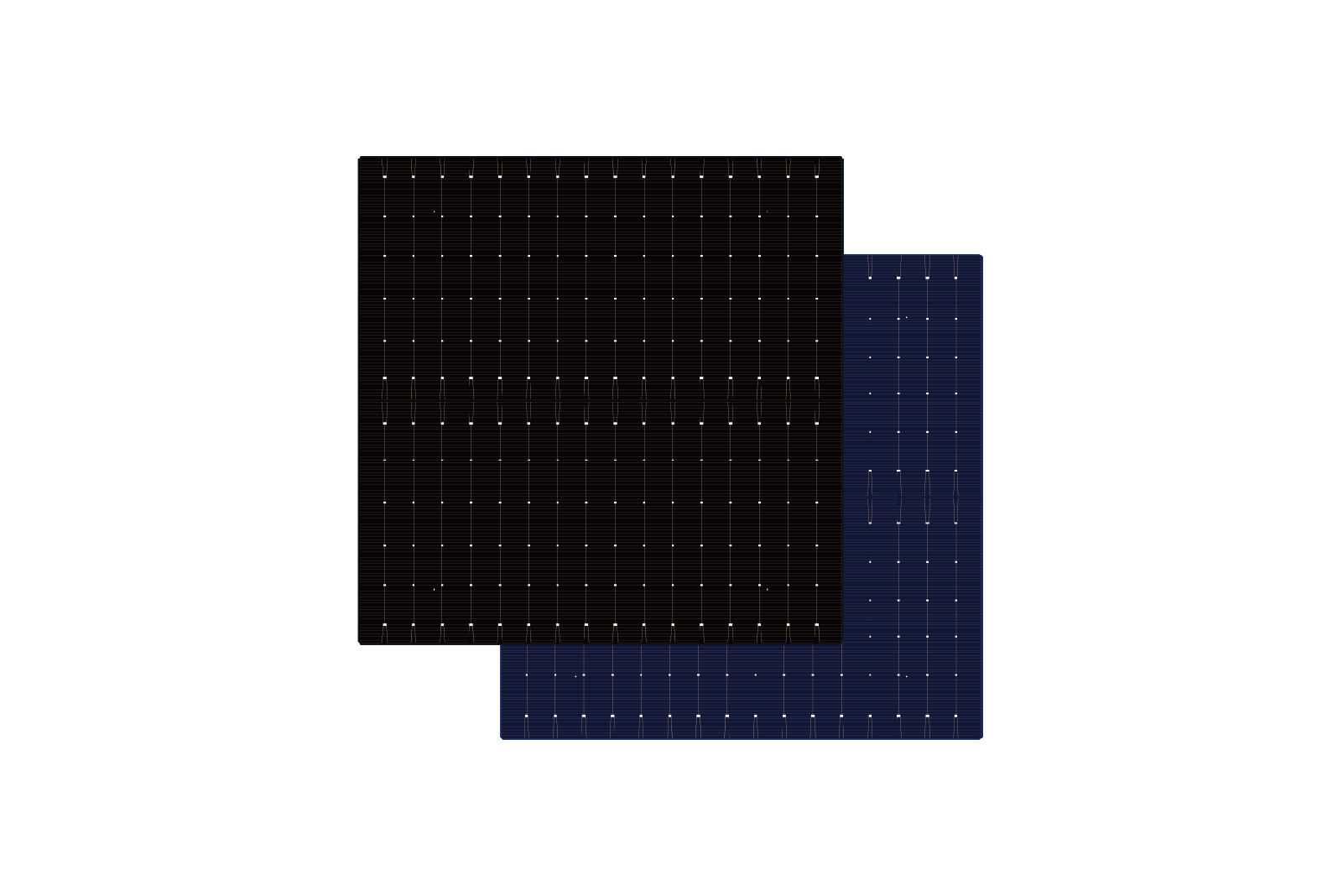

M10LN-ST-16BB -160200
| Edge Length | 182.2mm*183.75mm±0.5mm |
| Diagonal Length | Φ247mm±0.5mm |
| Thickness | 130μm±10μm |
| Power Temperature Coefficient | -(0.32±0.02)%/k |
| Maximum Voc | -(0.28±0.02)%/k |
| Maximum Isc | +(0.05±0.005)%/k |

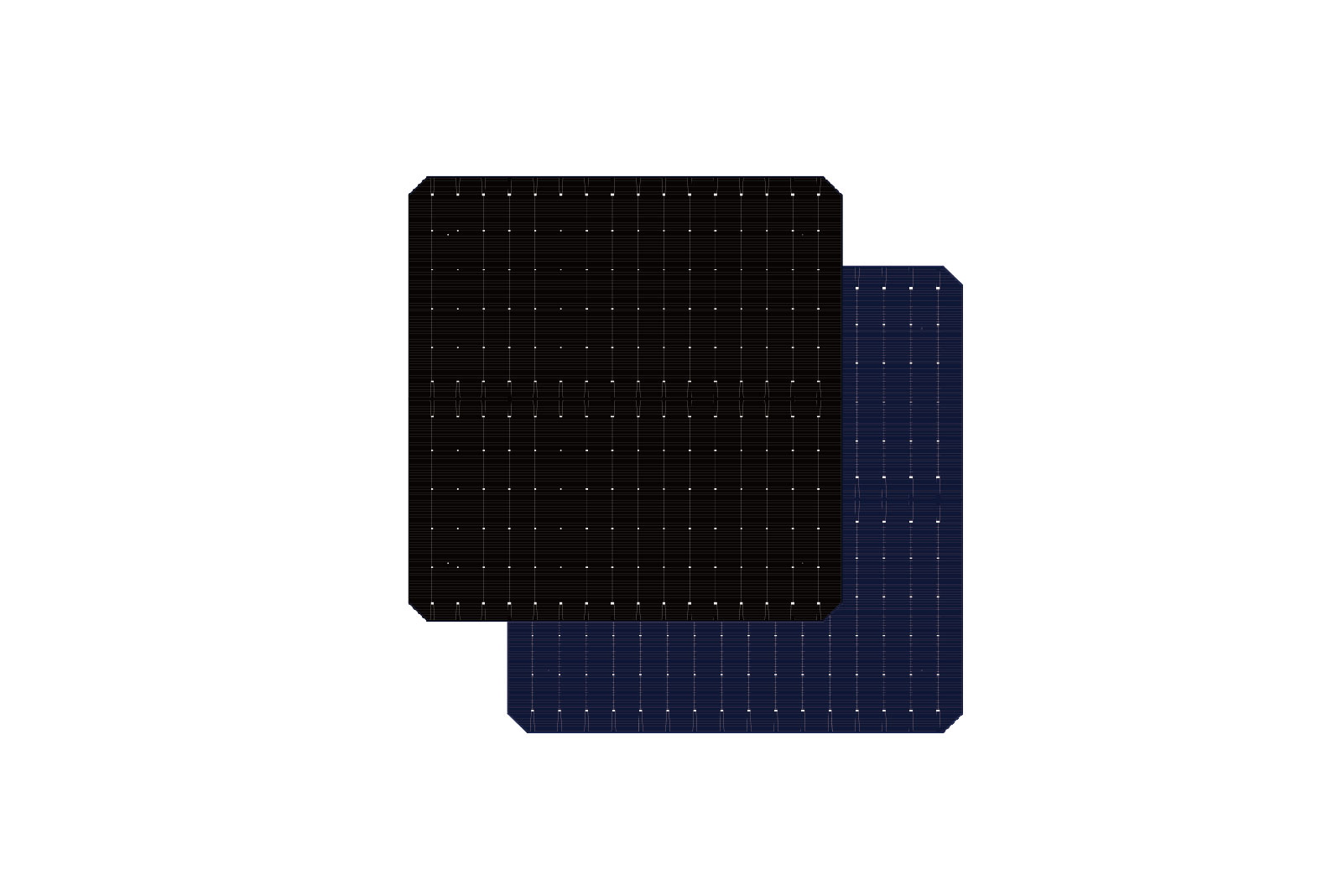

M10MN-ST-16BB -160176
| Edge Length | 182.2mm*183.75mm±0.5m |
| Diagonal Length | mΦ256mm±0.5mm |
| Thickness | 130μm±10μm |
| Power Temperature Coefficient | -(0.32±0.02)%/k |
| Maximum Voc | -(0.28±0.03)%/k |
| Maximum Isc | +(0.06±0.015)%/k |
M11LN-ST-16BB -180208
| Edge Length | 191.6mm*182.2mm±0.5mm |
| Diagonal Length | Φ262.5mm±0.5mm |
| Thickness | 130μm±10μm |
| Power Temperature Coefficient | -(0.32±0.02)%/k |
| Maximum Voc | -(0.28±0.03)%/k |
| Maximum Isc | +(0.06±0.015)%/k |
Higher Conversion Efficiency, Average Efficiency of Mass Production > 26.4%, Theoretical Efficiency > 27%, Bifaciality Over 85%
The power temperature coefficient down to -0.30%/℃
200W/m relative conversion rate in low irradiance environment ≥97%
Exceptional PID resistance
Lower sealing losses, better suited to high efficiency module
Lower LID
